| 브랜드 이름: | AORUI |
| 모델 번호: | SJ65/33 |
| 모크: | 한 셋트 |
| 가격: | negotiable |
| 지불 조건: | T/T에 의해 30% 선불, 배송 전 T/T 또는 L/C에 의해 70%를 혼합했습니다. |
| 공급 능력: | 1개월당 10세트 |
| Attribute | Value |
|---|---|
| Brand Name | Aorui |
| Automatic grade | Fully automatic |
| Certificate | CE certificate |
| Place of origin | China |
| Pipe diameter | 12-50mm |
| Voltage | 380V50HZ |
| Port of lading | Qingdao port |
| Screw design | Single screw |

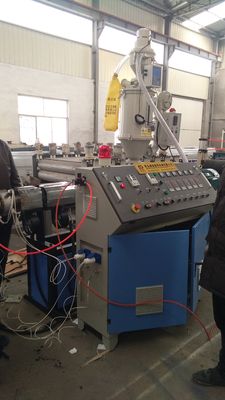

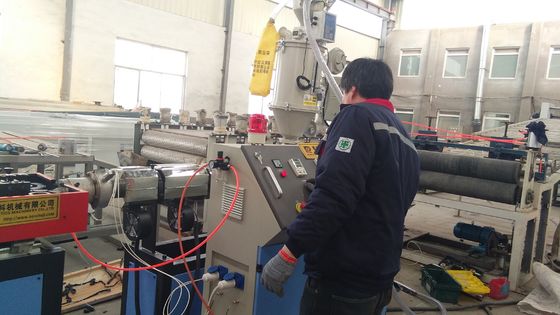

The SJ65/33 HDPE Single-Wall Corrugated Pipe Production Line is a high-efficiency automated system designed for manufacturing high-density polyethylene (HDPE) single-wall corrugated pipes with a diameter range of 12-50mm.
Utilizing advanced extrusion molding technology, this equipment produces lightweight, flexible, and corrosion-resistant corrugated pipes, widely used in agricultural irrigation, cable protection, ventilation ducts, and more.
| Model | PIPE diameter (mm) | Extruder Model | Output(kg/h) | Total Power(kw) | Module no.(pairs) | Production line speed (m/mim) |
|---|---|---|---|---|---|---|
| CMDB-12 | 6-12 | SJ-45 | 40-60 | 16 | 42 | 6-12 |
| CMDB-32 | 16-32 | SJ-50 | 50-70 | 23 | 48 | 6-12 |
| CMDB-63 | 20-63 | SJ-65 | 60-100 | 38 | 56 | 4-8 |
| CMDB-80 | 50-80 | SJ-75 | 70-130 | 64 | 72 | 3-8 |
