제품 상세 정보:
|
| 상태: | 새롭습니다 | 자동 등급: | 완전 자동 |
|---|---|---|---|
| 스크류 디자인: | 단일 스크류 | 플라스틱은 가공처리했습니다: | PP PE 수지 |
| 보증 시간: | 1년이요 | 원형의 장소: | 중국 |
| 전압: | 380V 50HZ | Brand name: | AORUI |
| 증명서: | CE는 증명합니다 | 적재의 공항: | 청도 공항 |
| 하이 라이트: | 시간 파이프 생산 라인 당 200 킬로그램,플라스틱 HDPE 파이프 성형기,PP 플라스틱 파이프 압출 라인 |
||
HDPE Sewage Tube Plastic Making Machine , Single Screw Extruder PE PP Duct Production Line
Quick details of pe pipe equipment:
1.This Plastic PPR, PE Electric Water Pipe Extrusion Making Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc.
2.This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Description pe pipe making machine:
1.PE series plastic pipe material productionline Is mainly used In the area of agicultural water supply sysemarchitetctural water supply system, pavement ofcables,etc.This machine group consists mainly ofvacuum callbrating tank,naul-oft unit,cutting unit,tilter,etc.
2.Single screw extruder and haul-off unit have appliedimboded A/c inverter,both vacuum pump and driving motor have applied excellent products.The haul-off unit includes two-claw type,three-claw type four-clawtvoe, six- claw type ,eight-claw type,ten-claw type,twelve-claw type,etc. No-scraps cutting,saw cutting or planet cutting can be applied,the property of machine groupis reliale the production eflicy is high.With specialdevice,it can produce inner wall spiral p,niner wall hollo pipe ,and core layer foam pip,etc,it can alsoluce PP PE. ABS,PPR,PEX,silicon core pipe and pipe material of other material.
3.The planetary cutting machine is fully automatic computer digital control,it hassuch advantages of simpleoperation,reliable property,etc. It has reached world advanced level.
Technical parameters:
| Extruder Model | Pipe Diameter Range(mm) | Capacity(kg) | Total Power(KW) |
| SJ65/33 | 20-63 | 120 | 80 |
| SJ65/33 | 20-110 | 180 | 140 |
| SJ65/33 | 50-160 | 330 | 180 |
Application:
PE water supply pipe and gas pipe extrusion machine can produce either PE water supply pipe or Gas pipe. It means that both PE water supply pipe and PE gas pipe can be produced under the same extrusion machine.

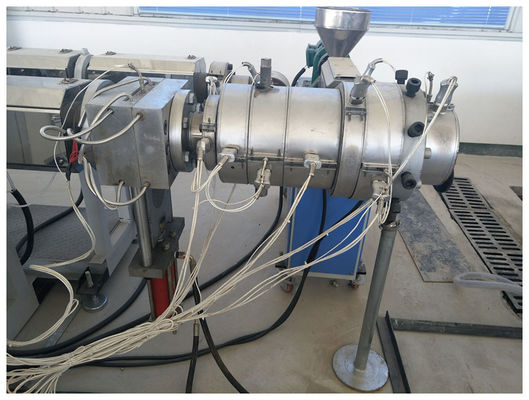

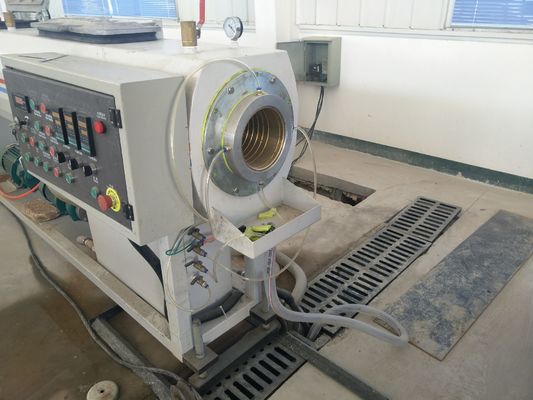

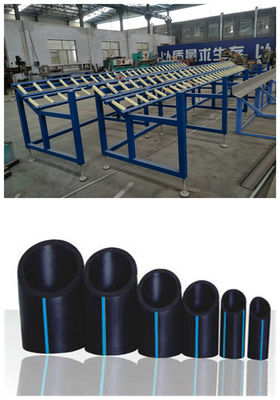

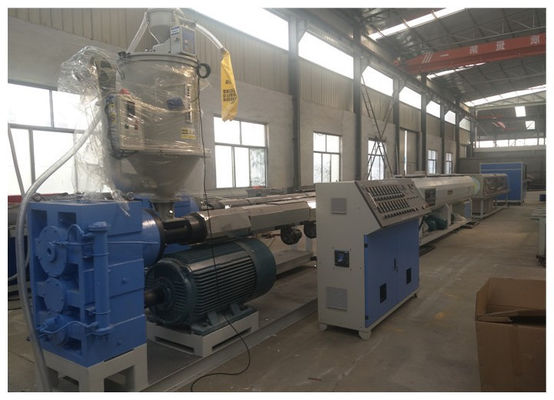

Machine display:
Tag: Plastic pipe making machine hdpe pipe extrusion machine pe pipe production line
